Reference	24037
Brand	ROSS
Type	PNEUMATIC CLUTCH
Control	conventional
Delivery time	Inmediatly
Year of manufacture	2003
Country of origin	ITALIA / ITALY
Location	Our warehouse

Technical features

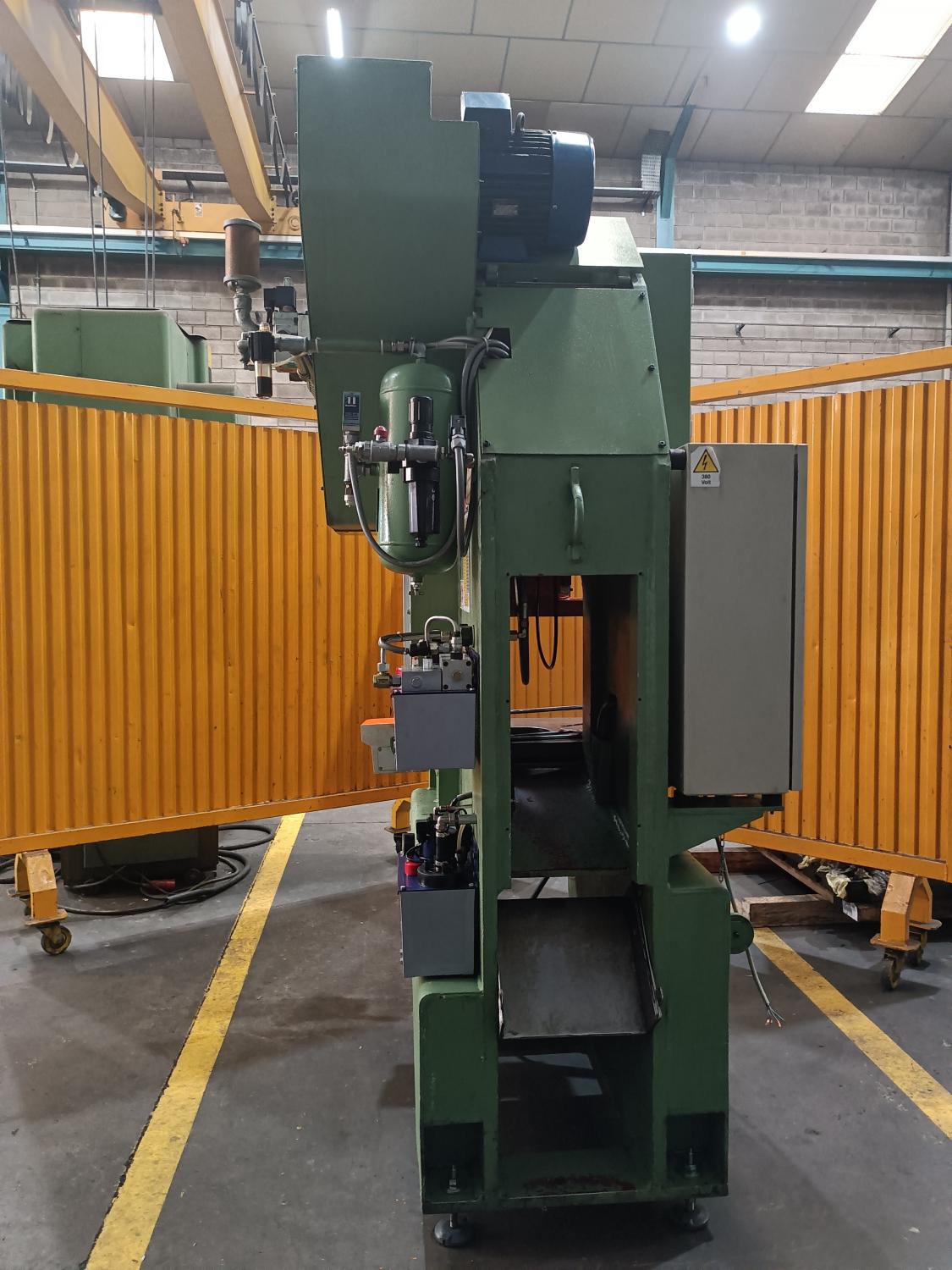

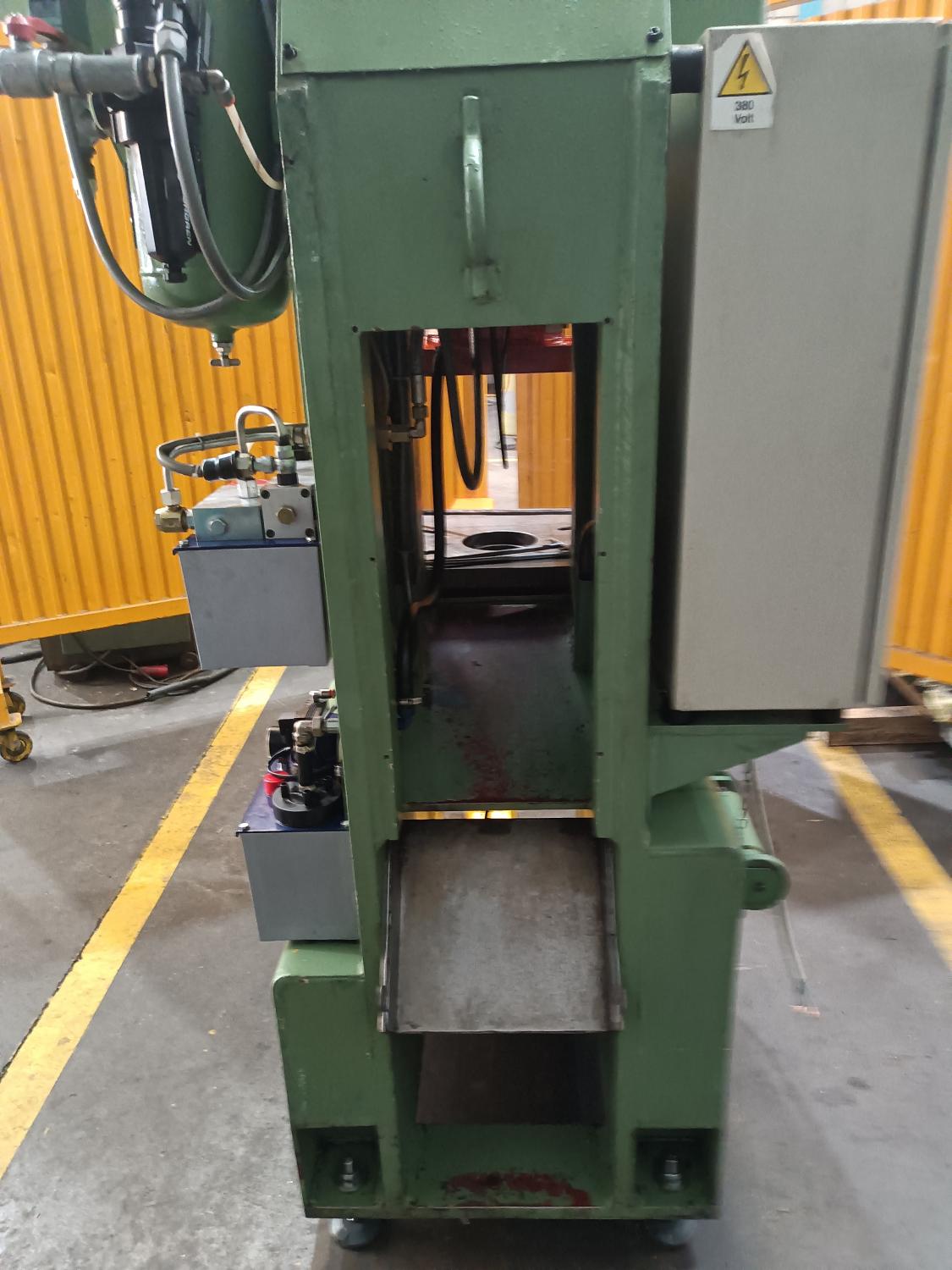

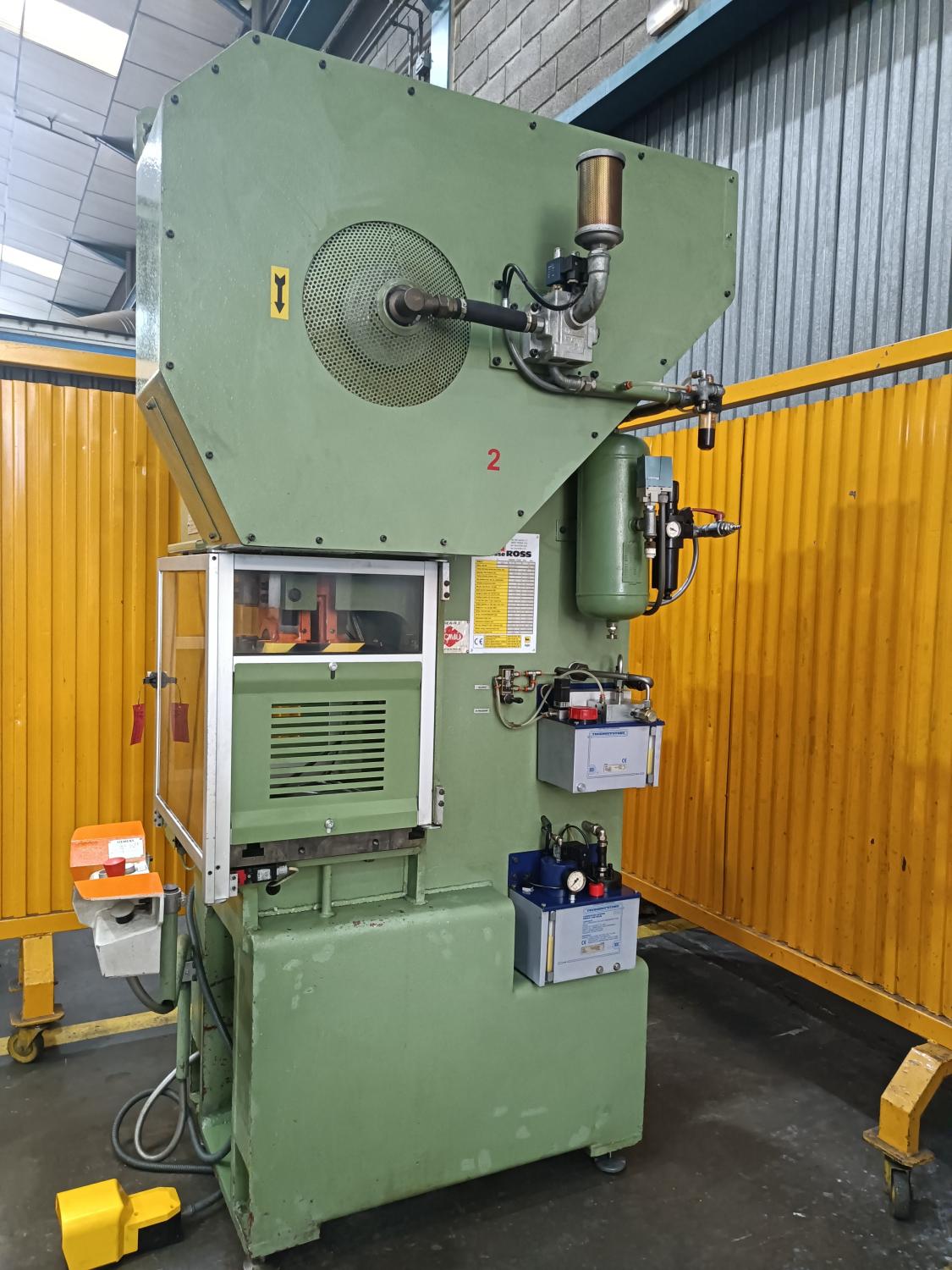

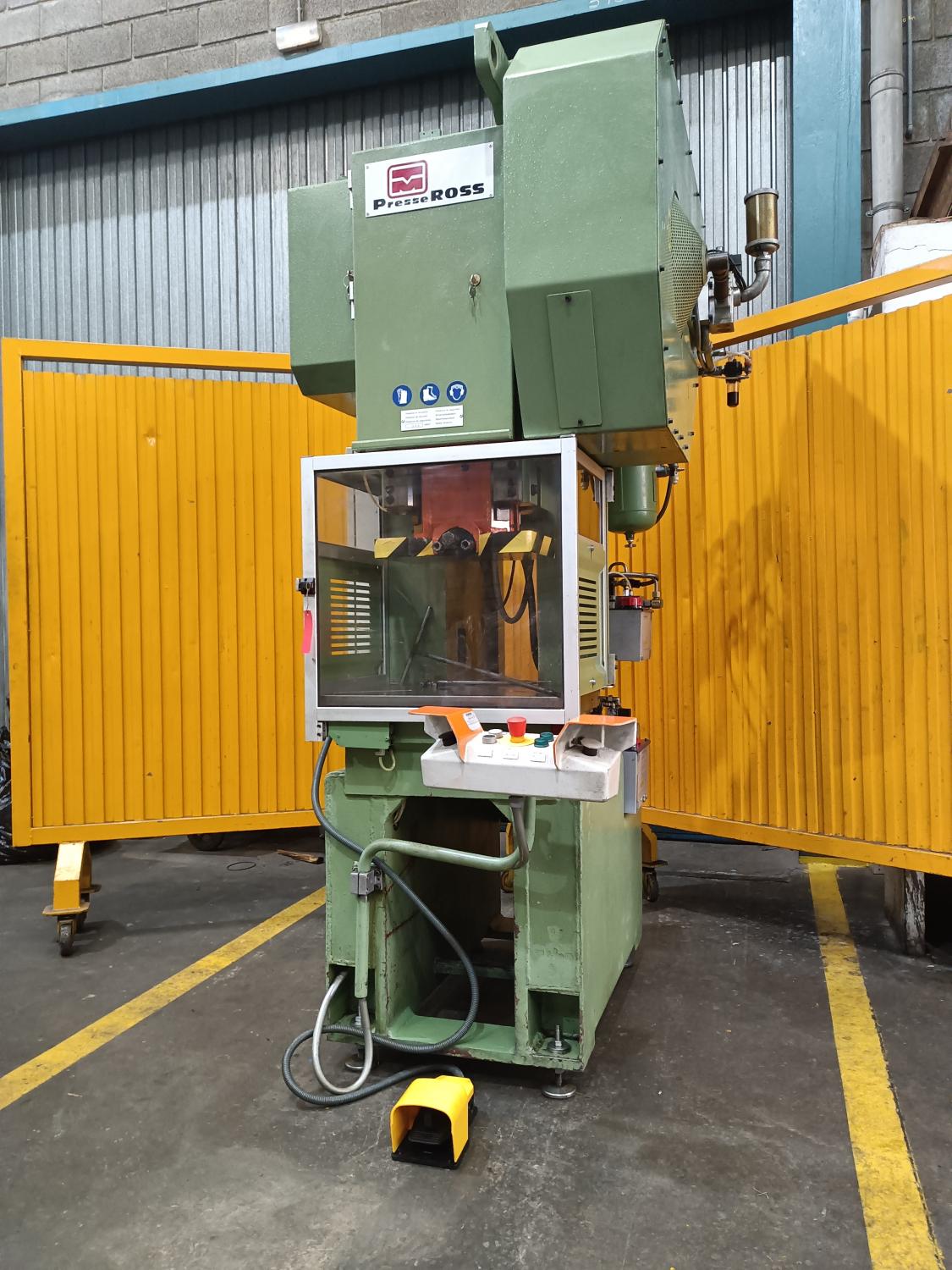

PNEUMATIC CLUTCH PRESS. ROSS. Motor: 3Hp 380V. Tons: 40. Year of manufacture: 2003. Country of origin: Italy. Table: 600x45 mm. Span: 370 mm. Weight: 2,200 Kg. hits/mins: 150. distance between columns: 250. strokes: 7-100 mm. Neckline: 170 mm. Hole in table: Ø120. Hammer surface: 400 x 250. Table height: 820 mm. Accessories: Two-handed and foot operated, hydraulic anti-lock safety device, automatic lubrication, safety screens. Reuse of lubricating oil. Dimensions: 1,000 x 1,000 x 2,350 mm. Almost new condition. With C.E.

Technical details

Table hole mm	Ø 120
Table height mm	820
Storke mm	7-100MM
Dimensions (m)	1 x 1 x 2,35
Throat-Gap mm	170mm
Force (Tn)	40
Hits/min	150
Max. Distance Table-Ram mm	370
Table mm	600 x 450
Motor	3Hp 380V
Clearance between columns mm	250
Weight	2.2 Tn
Ram surface mm	400 x 250
