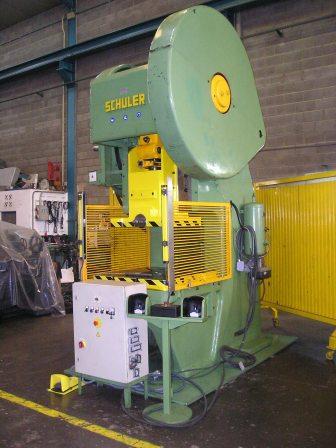

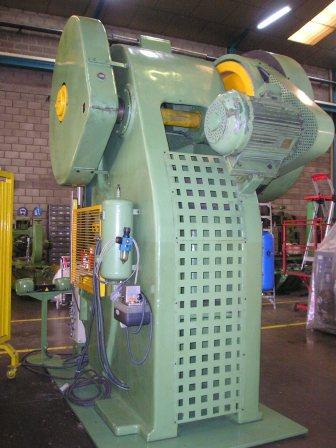

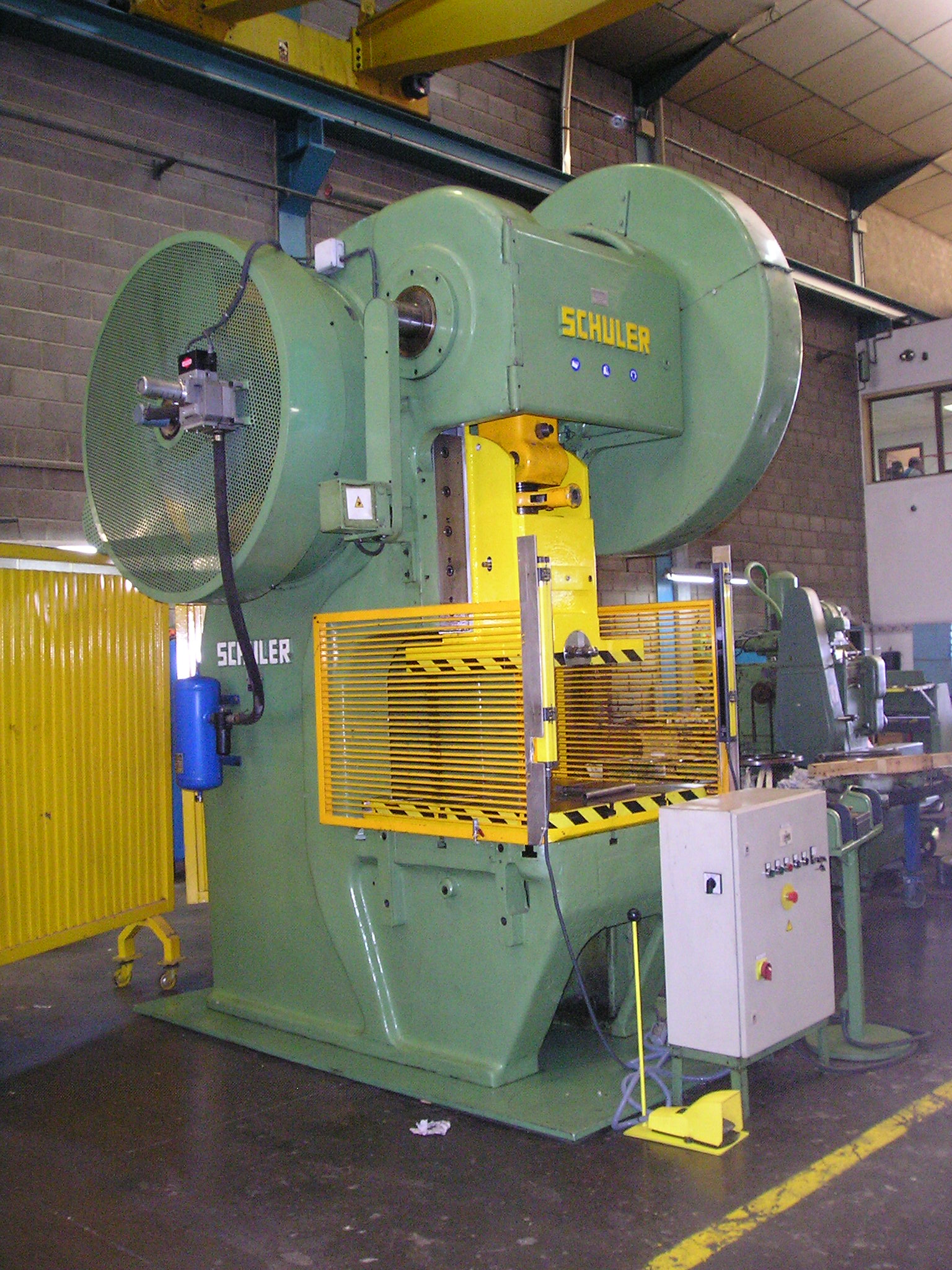

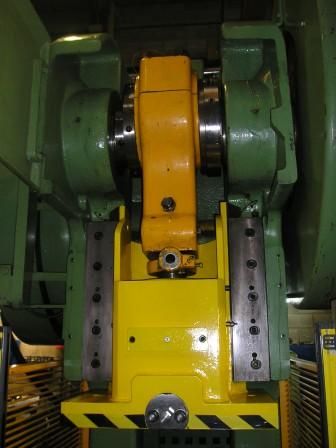

Eccentric presses Pneumatic Clutch SCHULER 200Tn

BACK


PRINT MACHINE

Request Information about this machine

If you would like more information about this machine, please write to us. We will be happy to assist you.

Required Field.
Required Field.
Required Field.
Required Field.
Required Field.
Required Field.

In accordance with the RGPD and the LOPDGDD, MAQUINARIA ANASTASIO SL will process the data provided, in order to answer the doubts and/or complaints raised through this form and to provide the requested information. Whenever you give us prior authorization, we will send you information related to [the activity/ products/ services] offered by MAQUINARIA ANASTASIO SL. You may exercise, if you wish, the rights of access, rectification, deletion, and others recognized in the aforementioned legislation. For more information about how we are treating your data, access our Privacy Policy.




Reference12023
BrandSCHULER 200Tn
TypePneumatic Clutch
ControlConventional
Delivery timeInmediatly
Year of manufacture
Country of originAlemania / Germany
LocationOur warehouse

Technical features

With extra plate 100mm, electronics barriers, mechanical overload protection, pedestal, pedal, automatic greasing, update in 2013

Technical details

Table hole mm240 mm
Storke mm30 -180mm
Dimensions (m)2,10 x 2,95 x 3,5 m
Distance between columns mm-
Throat-Gap mm515 mm
Force (Tn)200
Hits/min36
Max. Distance Table-Ram mm580 mm
Table mm1000 x1000 mm
Motor21Kw
Clearance between columns mm510 mm
Weight16 Tn
Table height mm900 mm
Ram surface mm800 x 500 mm
